DC 246 dual console boat
DC 246 Dual Console



PURE. PERSPECTIVE.

Has Arrived.

The sleek lines and the signature fiberglass-framed windshield of the new DC 246, the latest dual console boat in the Pursuit lineup, are the perfect introduction to the brand. First, she will turn your head. Then you’ll discover how the design and fit feel second-nature. The thoughtful accommodations and unique social zones will seem like they were made just for you and your family.

These hallmarks of the Pursuit dual console boat series are purposeful—allowing you to move seamlessly fore and aft through the center walkway and at every turn have a gorgeous view of the water. Fancy a fish dinner? With an LOA of 25' 8" and a significantly increased cockpit size and functionality over its predecessor, there’s plenty of elbow and angling room. Cruising around the bay? Everyone will find their favorite spot within the multitude of customer-requested seating configurations. Sandbar swim, anyone? Getting in and out of the water and cleaning your gear is easy with the optional bow boarding ladder with fresh water washdown.

The DC 246 adapts to your preferred pastimes—competitive and lively or reflective and tranquil. It’s your choice, you only need to take the helm.



JOIN THE CLUB!

Learn more here.







L.O.A.
25' 8" (7.82 m)
Beam
8' 6" (2.59 m)
Hull Draft
(motor up)
(motor down)

1' 9" (0.53 m)
2' 11" (0.89 m)
*Clearance w/Hardtop
(from waterline)

7' 2" (2.18 m)
Approx. Dry Weight
(single F300 DES engine)

6,138 (2,784 kg)
**Fuel Capacity
118 U.S. gallons (446 L)
Fresh Water Capacity (opt.)
18 U.S. gallons (68 L)
Waste Water Capacity (opt.)
6 U.S. gallons (23 L)
Max. Horsepower
300 hp (224 kw)
Deadrise
21°

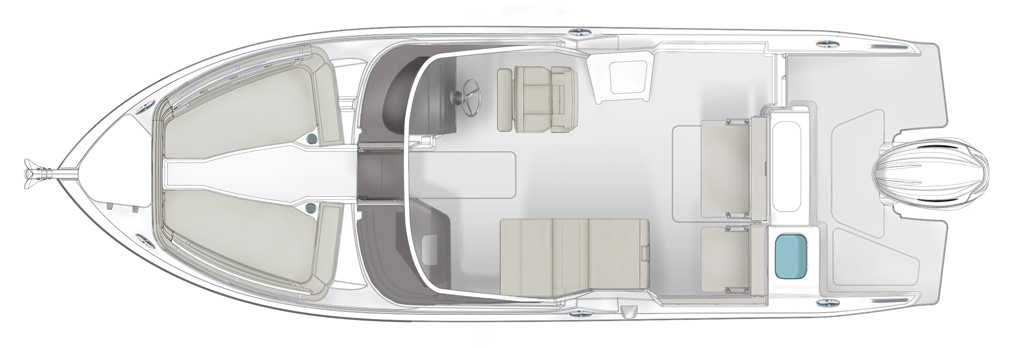

Plan View



*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.







Effective date: July 1, 2021

HULL FEATURES

  • Pursuit® Protection Plan:
    5-year hull/deck structural warranty
    5-year blister-free warranty
    2-year limited warranty
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 3 Ply Resin Infused Composite Transom System
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 1/2" 316L Stainless Steel
  • Stern Eyes (2), 1/2" 316L Stainless Steel
  • Integrated Transom Platform Extensions Outboard of Engine
  • Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform
  • Forward Bilge Pump with Automatic Float Switch, 900 GPH
  • Rope Locker, Self-Draining
  • Anchor Scuff Plate
  • Horn, Electric, with Oval Stainless Steel Cover
  • Dedicated Transducer Location

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid
  • Anchor Roller Chute with 8" Cleat, 14lb Galvanized Plow Style Anchor and Rode (150’ of 1/2" 8 Plait including 10' of ¼" G4 Chain)
  • Cleats, 316 Stainless Steel, 8" Pop Up (2) Stern, (2) Midship, (2) Spring and (2) Bow
  • Molded Recessed Hatches with Flush Hinges, Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Molded Single-Level Transom Platform/Splash Well for Athwartship Access and Integrated Rigging
  • Transom Deck Extension Storage Compartments with Fiberglass Hatches (Portside and Center)
  • Bow Grab Rails, 316L Stainless Steel (Port and Starboard)
  • Transom Grab Rail, 316L Stainless Steel, (Starboard)
  • Navigation Lights, LED, 2 Mile

COCKPIT FEATURES

  • Drink Holders: (2) Bow, (1) Helm Coaming Box, (1) Companion Coaming Box, (1) Portside Aft Facing Seat, (1) Behind Helm Seat, (4) Gunwales and (1) Transom Seat
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Bow Seating with Folding Armrests, Hinged Cushions, and Insulated Storage Below
  • Port and Starboard Forward Coaming Boxes with USB Charger (Portside) and Integrated Drink Holders
  • Premium Captain’s Chair with Folding Armrests, Articulating Bolster, and Vertical/Fore/Aft/Swivel Adjustments
  • Premium Portside Seating: Back-to-Back Seat with Extendable Lounger and Storage Below
  • Companion Seat Coaming Storage Box with Integrated Cup Holder
  • Dedicated Cooler Location
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • Fresh Water Outlet in Cockpit with Quick Connect Fittings and 25' Hose
  • LED Cockpit Courtesy Lights (5)
  • Folding Transom Seat (centerline) with Patented Self-Adjusting Backrest
  • Removable Folding Stern Anchor/Navigation Light
  • Ski/Rod Midship Floor Storage

FISHING FEATURES

  • Rod Holders (4), Stainless Steel, in Gunwales
  • Lighted Oceana Blue 15 Gallon Recirculating Insulated Live Well with Acrylic Lid
  • Fish Box/Storage in transom (31 gallons), Insulated Fiberglass with Overboard Drain

HELM

  • Molded Console with Fixed Helm, Padded Instrumentation Visor and Electronics Mounting Surface
  • Tilt Helm with Edson® 316L SS Steering Wheel with Control Knob and Non-Slip Grip
  • 12V Switch Panel with Flat Black Contoura Lighted Switches
  • Compass
  • Trim Tab Control Panel and Indicator
  • 12V Outlet and USB Charger
  • Extra Deep Drink Holder, 316L Stainless Steel
  • Helm Fire Extinguisher
  • Starboard Coaming Storage Box with Integrated Cup Holder

CONSOLE (STARBOARD SIDE)

  • Molded Fiberglass Lined Storage with Acrylic Door
  • Integrally Switched 12V Overhead Light
  • Electronics Access Panel
  • Dedicated Dock Line Storage
  • Dedicated Trash Receptacle Storage
  • 12V Distribution Panel and Battery Switches

HEAD (PORT SIDE)

  • Two Piece Fiberglass Door with Storage, Dash Visor, Grab Rail and 316 Stainless Steel Locking Latch
  • Molded Fiberglass Interior Liner
  • Portable Head (5 gallon) and 316L Stainless Steel Pump-out Fitting
  • Molded Sink with Pullout Freshwater Shower
  • Vanity Mirror
  • Integrally Switched 12V Overhead Light
  • Toilet Tissue Holder
  • Fire Extinguisher

WINDSHIELD

  • Molded Fiberglass Windshield Frame with Tempered Glass Windshield and a Center Walk-through Door

ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
  • Bonding System: Thru Hull Fittings Below Water Line, Zinc Anode and Garboard Drain
  • Two-Battery System: Engine (1) and House (1)
  • Grounding Bus Bar
  • Electronics Fuse Block

MECHANICAL SYSTEMS

  • Molded Interior White Gel Coat
  • Molded Removable Access Hatch with Gasket
  • Molded Bilge Sump Area
  • Two (2) 900 GPH Low Profile Bilge Pumps (one forward and one aft) with Integrated Float Switches and Stainless Steel Clad Composite Thru Hull Fittings
  • 1100 GPH Tournament Series Live Well Pump, Seacock and Thru Hull Fitting
  • Pressure Sensing Raw Water Pump with In-Line Filter

FUEL SYSTEMS

  • EPA Compliant Lined 118 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valve, Digital Level Indicator and Deck Fuel Fill Plate
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Yamaha® Water Separating Fuel Filter with Primer Bulb

WATER SYSTEMS

  • 18 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Pressure Sensing/Variable Speed Water Pump with In-Line Filter



Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.



BOAT WITH ENGINES

Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), CL5 Display Single Yamaha® Joystick Control (Requires Garmin Package and Stereo)

COLOR SELECTIONS

Hull Color
Fresh White, Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue
Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue) Helm Color
Carbon, Neptune Gray, Gulf Stream Blue, Flag Blue, Fresh White
Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray
Upholstery Color
Sea Salt (Standard), White/Gray
Sunbrella® Canvas color - Black, Tweed, Cadet Gray, or Navy

MECHANICAL SYSTEMS

Windlass Anchor System with Remote Anchor Upgrade (Stainless Steel) Underwater Lights (2) All Color Sea Blaze Quattro Spectrum Mid-Level Cockpit Accent Lights, LED Blue (4) Windshield Wiper, starboard with fresh water wash

COMFORT & CONVENIENCE

Bow Table - Converts Into Sunpad with Cushion Cockpit Wet Bar, includes: Sink with Faucet, Cup Holders, Corian Accent with Cutting Board and 45 qt Yeti Cooler Bow Beach Boarding Ladder and Fresh Water Quick Connect Fitting At Anchor Locker Electric Marine Head with 6 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru HullFitting with Seacock Stereo, JL Audio System: MM105 AM/FM/USB Bluetooth Head Unit w/Amp, Subwoofer, 4 JL Audio Speakers, and External Antenna Stereo, Premium Upgrade: JL Audio: w/ 6 Channel DSP Amp, Subwoofer, 4 Sport Speakers, and External Antenna, Sirius Receiver, Includes 3 Months Subscription Transom Seat (Portside) Folding with Patented Self-Adjusting Backrest Ski Tow Bar, Transom Mount, Removable

WEATHER

Bimini Top with Front and Side Curtains - Sunbrella® Bimini Top Aft Curtain - Sunbrella® Fiberglass Hardtop with Powder Coated Aluminum Supports, Four (4) Rod Holders on Aft Supports, Custom 316L Stainless Steel Ratcheting LED Anchor/Stern Light with Burgee Rings and USA Flag, Two (2) Tri Color LED Lights, Fore and Aft Facing LED Spreader Lights Hardtop Front and Side Curtains - Sunbrella® Upgraded Hardtop Front and Side Curtains - Stamoid® White Hardtop Aft Curtain - Sunbrella® Upgraded Hardtop Aft Curtain - Stamoid® White Aft Cockpit Mediterranean Style Sunshade (Stowable) Bow Mediterranean Style Sunshade (Stowable) (Requires Hardtop Option) Bow Tonneau Cover - Sunbrella® Upgraded Bow Tonneau Cover - Stamoid® White Instrument/Dash Cover - Sunbrella® Engine Cover - Sunbrella®

SPORT FISHING

Hardtop Mounted Rod Holders (4)

ELECTRONICS

Garmin® Electronics Package: GPSMAP 8612XSV, Airmar B75M 0-7 Degree 600 watt CHIRP Transducer, NMEA 2000 Starter kit, Pursuit Custom Dash Panel, VHF Radio 315 with Antenna, (Requires Stereo Option)
