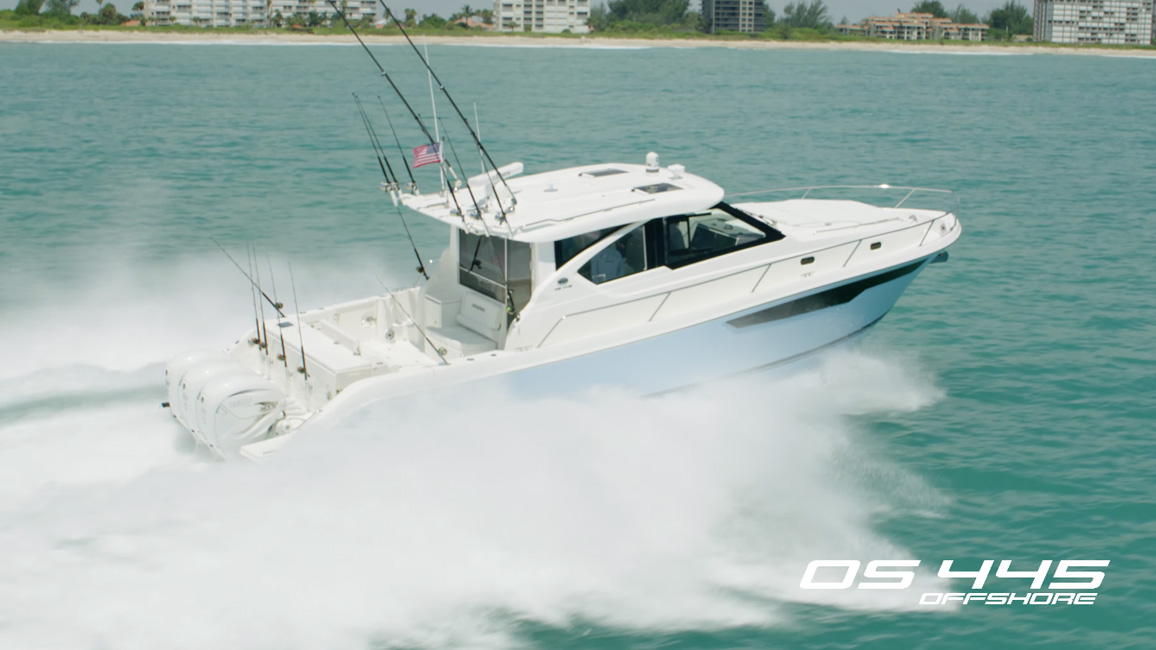

Pursuit OS 445 Offshore

HULL FEATURES

• Pursuit® Protection Plan:
  5-year hull/deck structural warranty
  5-year blister-free warranty
  2-year limited warranty
• Pursuit Fresh White Gelcoat and Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
• 27-Layer Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
• Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
• Foam Filled Structural Grid
• Bronze Thru Hull Fittings Below Water Line
• Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
• Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
• T-Handle Bronze Garboard Drain
• Zipwake Dynamic Trim Control System, Series S Interceptors, Fully Automatic Pitch and Roll Control
• Bow Eye, 5/8" 316L Stainless Steel

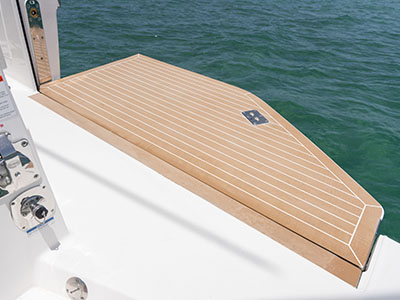

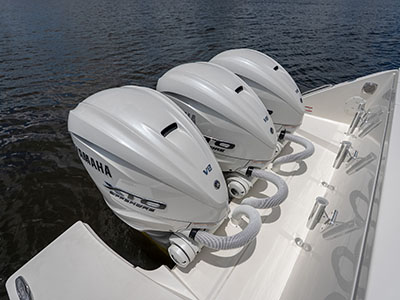

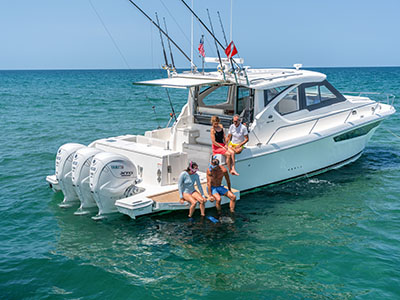

• Integrated Transom Platform Extensions Outboard of Engines
• Boarding Ladder, 3-Step Telescopic, Mounted in Hull Platform
• Molded Hull Side Frameless Tempered Glass Windows
• Anchor System, Integrally Molded Thru-stem
• Dedicated Transducer Location
• Forward Hull Compartmentation with One (1) 1100 GPH Bilge Pump with Automatic Float Switch
• Two (2) 1500 GPH Bilge Pumps with Electric Switches and High-Water Alarm
• Bow Thruster, 5.4 HP (4.0kW) with Group 31 AGM Battery, Switch and Fuse

DECK FEATURES

• Hull and Deck Joint: Mechanically Fastened and Thru-Bolted at Cleat Locations
• Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
• Transom Cap, 316L Stainless Steel
• Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
• Cleats, 316 Stainless Steel, 12" (4-Spring, 2-Bow) and 10" Pop Up (2-Stern)
• Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks

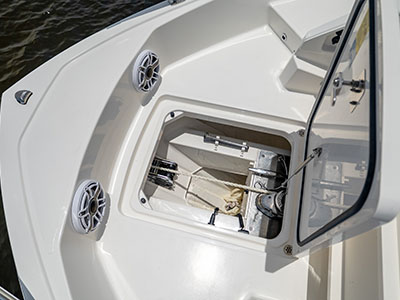

• Flush Mounted Integral Anchor Locker, including: Fiberglass Lid w/Gas Shock, Vertical Anchor Windlass with Switch at Helm and Remote at Anchor Locker, 316L Stainless Steel through Stem Anchor Roller with 10" Mooring Cleat, Chain Binder, 44lb Stainless Steel Plow Style Anchor, Self-Righting Swivel, 320' Rode (5/8" 8 Plait Including 20' of G4 Chain), Fresh and Raw Water Quick Connect Fittings, and LED Courtesy Light.

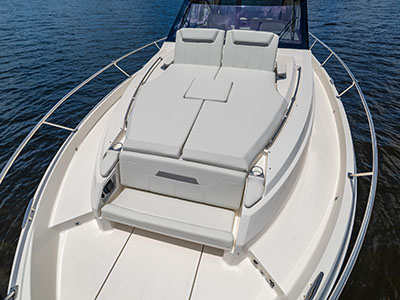

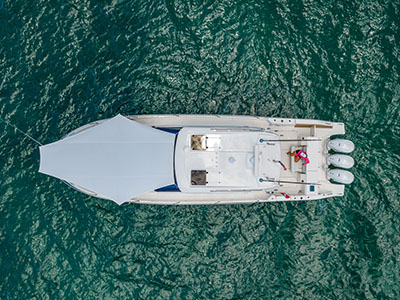

• Foredeck Cabana Area, Including:

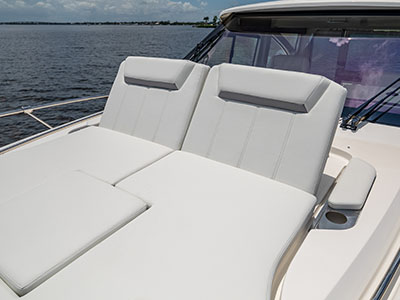

  • Flush Sun Pad with Chaise-Style Adjustable Backrests, Drink Holders, Grab Rails, and Sun Pad Cover

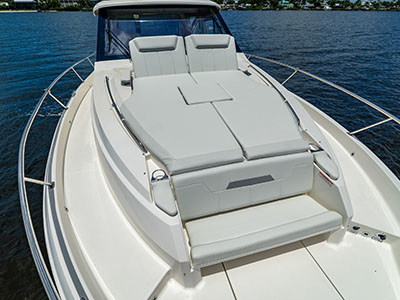

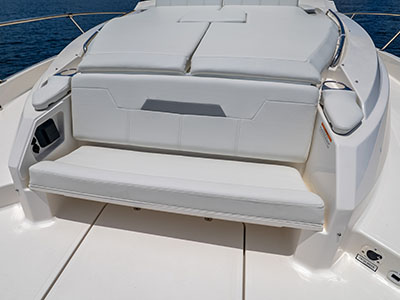

  • Forward-Facing Bow Seat with Recessed Footwell, Armrests, Drink Holders, Dual USB Charger, Stereo Remote, Speakers, RGB Accent Lighting, and Seat Cover
  • Courtesy Lighting
• Self-Draining Cockpit with Molded Water Management and 316L Stainless Steel Drainage Grates
• Molded Transom Walkthrough with Multi-Position Hinged Transom Door
• Bow Rail, One-piece, Welded 316L Stainless Steel, with 1 1/4" Top Rail and 1" Stanchions
• Recessed Side Deck Bulwarks with Molded Access Steps from Cockpit and Courtesy Lighting
• Transom Grab Rails, 316L Stainless Steel (Port and Starboard)
• Single Level Splashwell Deck with Non-Skid for Athwartship Access
• Shore Power Inlet, 316L Stainless Steel
• Dockside Fresh Water Inlet w/Pressure Regulator

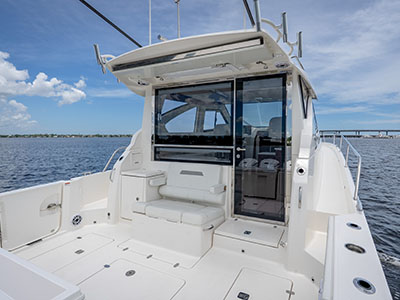

COCKPIT FEATURES

• Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
• Full Cockpit Breathable Coaming Bolsters with Dri-Fast Foam

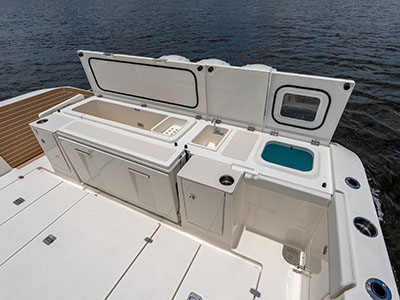

• Transom Sink with Hot/Cold Faucet, Cutting Board, and Fiberglass Lid

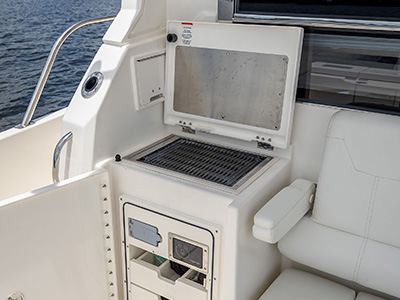

• Molded Cockpit Entertainment Center with Electric Grill, Hinged Fiberglass Lid, and Dedicated Storage Below with 120V GFCI Protected Outlet
• Aft-Facing Mezzanine Seat with Folding Armrests, Drink Holders, USB Charging Port, Stereo Remote, A/C Vent and Storage Below

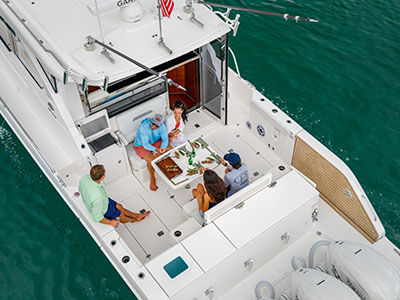

• Custom Molded Cockpit Table with Dedicated Storage

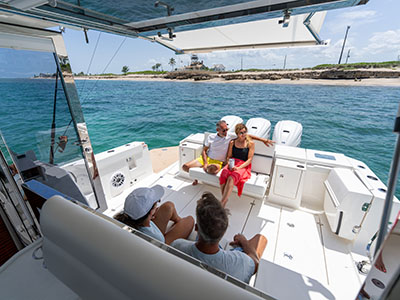

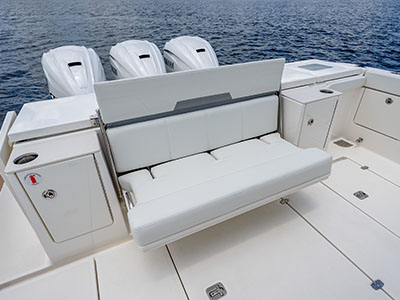

• Folding Transom Seat (patent pending): Extra Thick Seat Cushion with Auto Flip-Up Backrest, Grab Rails, and Low Maintenance Seat Face with Solid Surface Top when Stowed
• Extra Deep Drink Holders, 316L Stainless Steel

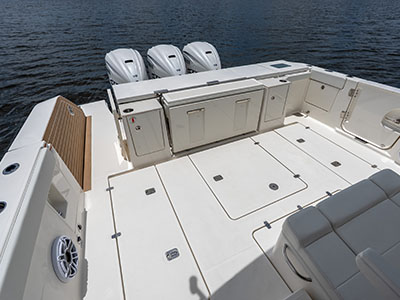

• Cockpit Machinery Access Hatches (2 - Fwd & Aft) with LED Lights and Integrated Access Step
• Fresh Water Cockpit Shower with Hot/Cold Mixing Valve and Pull Out Sprayer
• Raw and Fresh Water Outlets in Cockpit with Quick Connect Fittings and 25' Coil Hose
• Engine Flush System with Quick-Connect Garden Hose Fittings

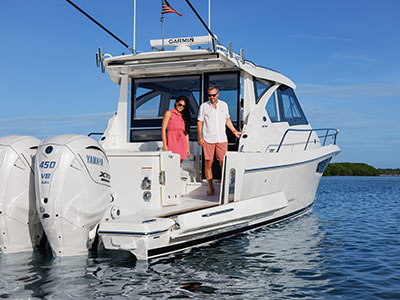

• Hull Side Boarding Door, Inward Opening (Port Side) with Heavy-Duty 316L SS Hardware and Swim/Dive Ladder Keyway Plate
• Hull Side Boarding Platform, Outward Opening, Electro-Hydraulically Actuated (Starboard Side) with Synthetic Teak Decking and Swim/Dive Ladder Keyway Plate
• Removable Dive-Style Telescoping Ladder (1) for Hull Side Door and Platform (w/Dedicated Storage)
• Compartment Under Bridge Deck Step with Storage for 5-Gallon Bucket, 2 Large Fenders, and Gear
• LED Cockpit Courtesy Lights with Waterproof Switch in Cockpit
• Cockpit Fire Extinguisher

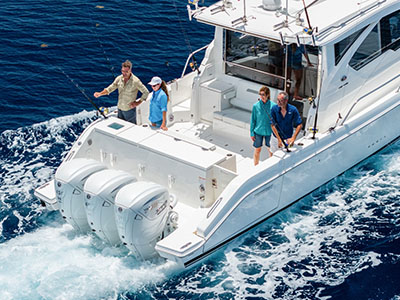

FISHING FEATURES

• Rod Holders, Gunwale and Transom

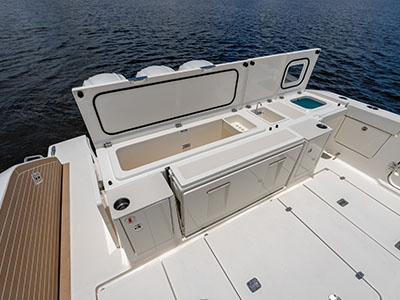

• Transom Livewell, Lighted Oceana Blue (50 gallons) Recirculating and Insulated with Fiberglass Lid and Acrylic Window (Port)
• Cockpit Tackle Storage at Transom and Port Coaming with Dedicated Space for Tackle Boxes

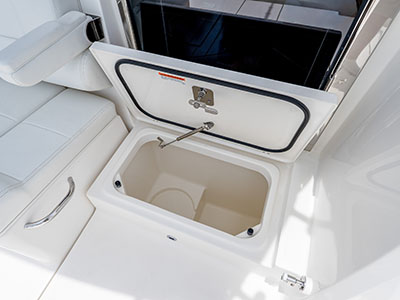

• Fish Boxes, Three (3) Totaling 239 gallons
  • Transom (75 gallon) Insulated, Refrigerator/Freezer with Digitally Controlled Thermostat and Overboard Drain
  • Cockpit Floor (2 @ 82 gallons) with Molded Foam Insulation, and Dedicated Diaphragm Pumps with Overboard Discharges (Port & Starboard)
• Rod Storage, Lockable, in Cabin
• Aluminum Reinforcement Plates and Wiring for Downrigger Installation

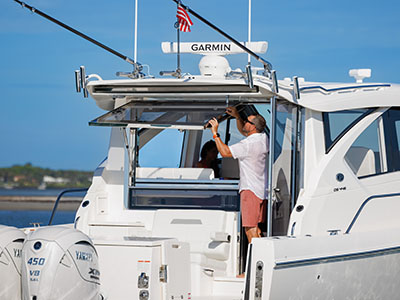

HARDTOP & WINDSHIELD

• Molded Fiberglass Full Beam Hardtop with Visor
• Custom Front Windshield System with Optically Clear Laminated Glass w/Integrated XIR Film and Removable Mesh Privacy Cover
• Pantograph Windshield Wiper System with Fresh Water Washer
• Tempered Side Glass with Dual Sliding Side Vent Windows
• Electrically Actuated Anchor/Stern LED Lights with Burgee Rings and Embroidered American Flag
• Navigation Lights, LED, 2-Mile (Integrated into Hardtop)
• Electrically Actuated VHF and AM/FM Antennas
• Tri-Color LED Overhead Lights (6)
• Two (2) Aft Facing Spreader Lights
• Ventilation Hatches with Dual Purpose Screens/Shades (Port and Starboard)
• Integrated 316L SS Grab Rails (Exterior Port & Stbd)
• Integrated 316L SS Grab Rails (Interior Headliner)
• Air Horn, Trumpet
• Dedicated Radar, Antenna, and Outrigger Locations

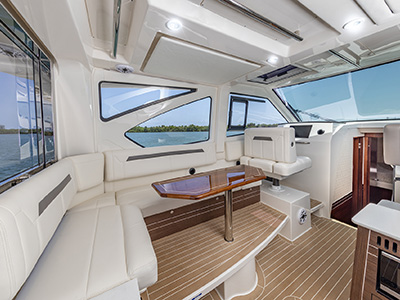

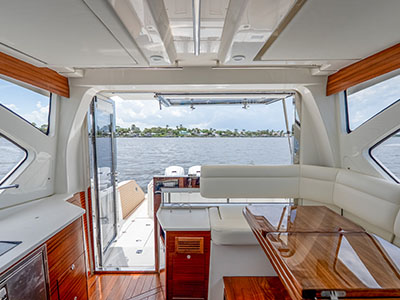

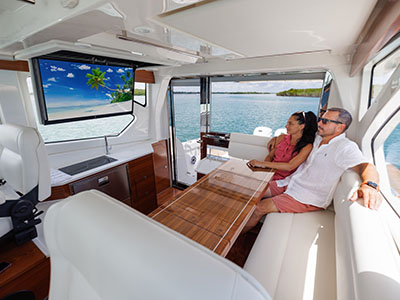

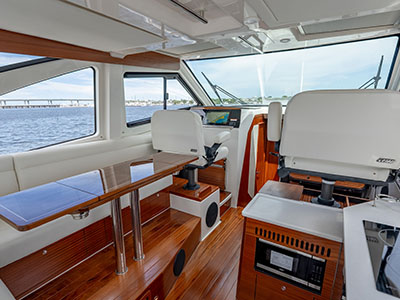

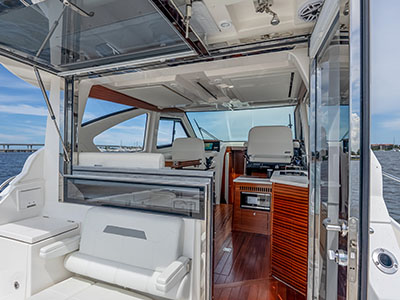

BRIDGE DECK

• Synthetic Teak Flooring

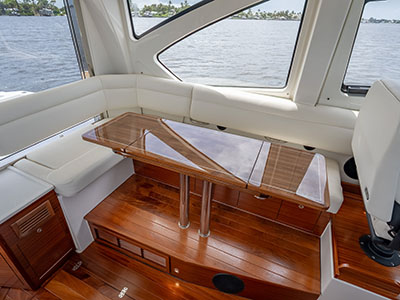

• L-Shaped Lounge with Top-Load Adjustable Refrigerator/Freezer and Large Storage Drawers Beneath
• Bridge Deck Table, Removable
• End Table with Solid Surface Top, Drink Holders, Climate-Controlled Bottle Storage, Drawer Storage, and Trash Receptacle
• 240V/60 Cycle Bridge Deck Air Conditioning with Reverse Cycle Heat, 26,000 BTU (16K BTU Port / 10K BTU Stbd)
• Smart TV, Fold-Away Ceiling-Mounted (Electrically Actuated)
• Audio Entertainment System: Custom-Tuned JL Audio Stereo System with Bluetooth® Compatible Media Master Head Unit, Premium M6 Coaxial Speakers with Sport Covers - 7.7" (4-Cockpit, 4 Bridge Deck), 6.5" (2-Bridge Deck), 8.8" (2-Bow), and 10" Subwoofers (2), DSP Amplifiers, Full-Function Remote (Bow), FM Antenna with Electrically Actuated Mount, and SiriusXM Satellite Receiver with Antenna (Includes 3 Months Subscription)
• Accent Lighting, Full Spectrum with Control Panel
• Direct/Indirect Lighting
• Storage Hatch, Center Bridge Deck Floor
• Side Window Interior Privacy Shades
• Removable Mesh Shade for Front Windshield
• AC Main Distribution Panel

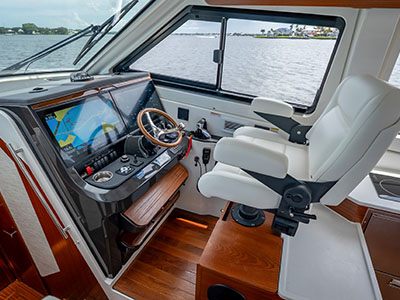

HELM

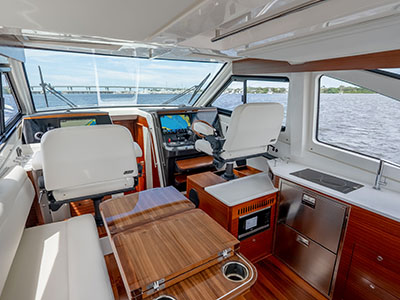

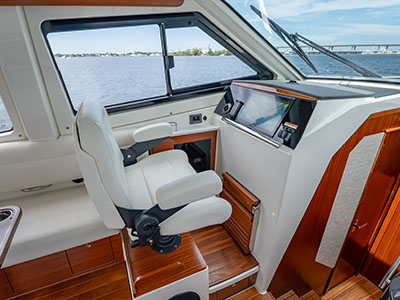

• Captain's Helm Seat: Stidd™ Electrically Operated (Up/Down/Fore-Aft Adjustments), Folding Armrests, and Custom Upholstery
• Portside Companion Seat: Stidd™ Electrically Operated (Up/Down) and Manual Adjustments (Fore-Aft, and 180° Swivel), Folding Armrests, Custom Upholstery, Fold-Down Footrest, and Storage Beneath
• Molded Helm Panel with Accent Visor and Electronics Mounting Surface (accommodates dual 22" MFD's)
• Custom Helm Accents
• Wireless Phone Charger
• Fold-Down Platform Step (for Secondary Standing Operating Position)
• Synthetic Teak Flooring
• 12V Switch Panel with Illuminated Rocker Switches and Backlit Function
• Steering Wheel, Matt Black Finish, with Control Knob and Non-Slip Grip on Yamaha Electric Steering Control with Programable Steering Friction
• Bow Thruster Joystick Control
• Ritchie® Navigator Compass
• Zipwake Dynamic Trim System Control Panel
• JL Audio Media Master Full Function Display w/Auxiliary Input Port
• Helm Drink Holder
• 12V Outlet (1) and Dual USB Charger (1)
• Helm Fire Extinguisher

ELECTRONICS

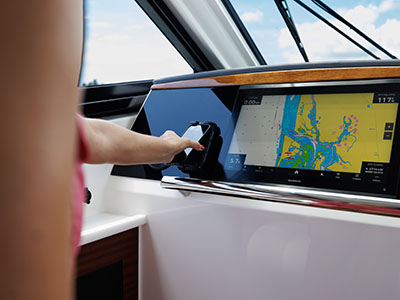

• Garmin® Package: Dual GPSMAP 8622 (1 XSV), Airmar B175M 1KW CHIRP Transducer, Remote SD Card Reader, NMEA 2000 Starter kit, Yamaha MFDI Interface
• VHF with Antenna and Electrically Actuated Mount to the Garmin® package

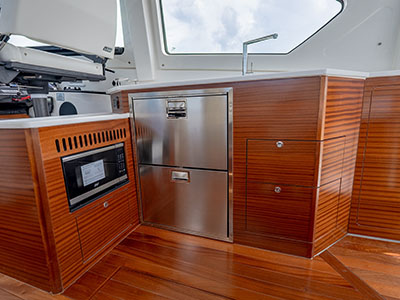

GALLEY

• Located in UP Position (Starboard Bridge Deck)
• Corian® Galley Countertop
• Sink with Faucet and Cutting Board
• 240V Bridge Induction 2-Burner Glass Cooktop with Touch Controls and SilKEN® Mat
• Microwave Oven, 120V Stainless Steel (0.7 cu. ft.)
• Refrigerator/Freezer, 2-Drawer (7.5 cu. ft.)
• Galley Lower Storage Cabinet with Large Storage Drawers
• 120V Outlet with GFCI Protection (1)
• Fire Extinguisher
• DC Main Distribution Panel Cabinet

CABIN

• Full Fiberglass Cabin Deck Liner
• Full Fiberglass Hull Liner with Sound Dampening Insulation
• Cabin Entry Steps with Handrail and Wood Treads
• Custom Solid Wood Tongue and Groove Flooring
• Solid Wood Veneers on Interior Cabinetry
• 240V/60 Cycle Cabin Air Conditioning with Reverse Cycle Heat, 16,000 BTU
• Main Cabin Switch Panel
• Accent Floor Lights
• Overhead Lights
• Indirect Strip Lighting

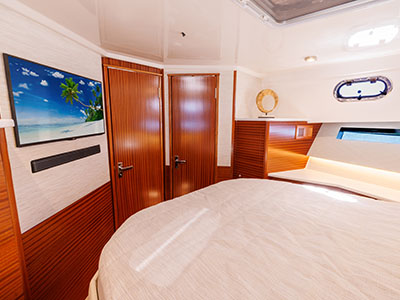

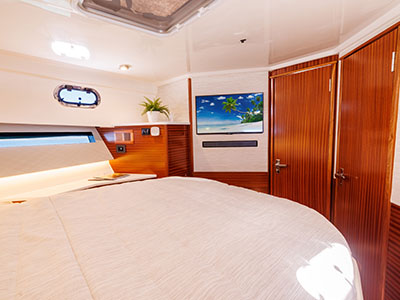

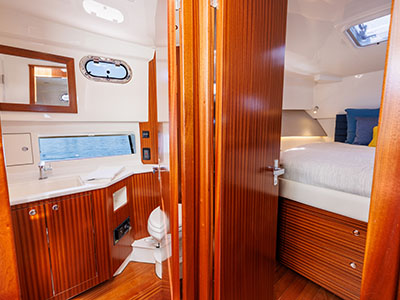

PRIMARY STATEROOM

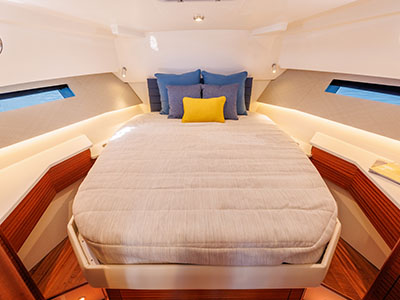

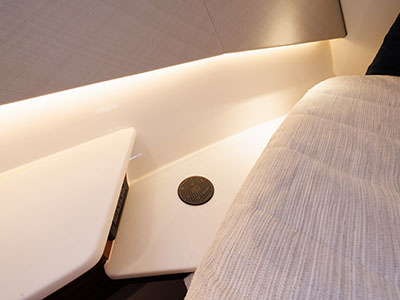

• Island-style Berth with Queen-Size Memory Foam/Innerspring Mattress, Gas-assisted Mattress Base with Trunk Storage, and Drawer Storage Below
• Nightstands (Port & Starboard) with Corian® Tops, GFCI-Protected Outlets, and USB Charging Ports
• Reading Lights
• Hanging Lockers (2) with Integrated Shelving
• Smart TV, 32" with Flush-Mounted External Sound Bar
• Tempered Glass Hull Side Windows (Port & Stbd) w/Custom Window Trim with Marine Grade Pleated Blinds
• Portside Vanity
• CO Monitor
• Fire Extinguisher

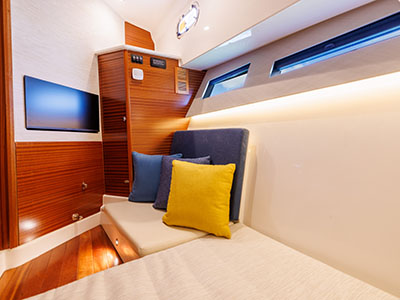

STARBOARD STATEROOM

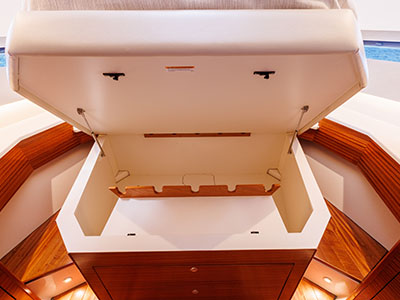

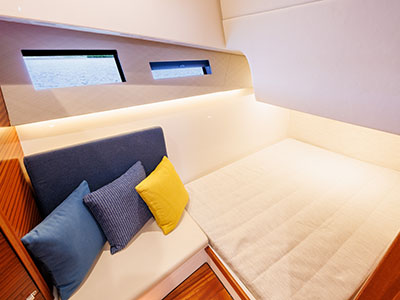

• Mattress with Storage Below
• Starboard Settee
• Overhead Lights
• Courtesy Light
• Hanging Locker with Integrated Shelving
• Smart TV, 24" with Custom Cabinetry Surround
• Tempered Glass Hull Side Window w/Custom Window Trim with Marine Grade Pleated Blinds
• Portlight Window
• Rod Storage
• USB Charging Ports (2)
• 120V GFCI-Protected Outlets
• CO Monitor
• Fire Extinguisher

UTILITY AREA

• Access Through Hinged Cabin Entry Steps
• Dedicated Gear Storage
• Mechanical Space

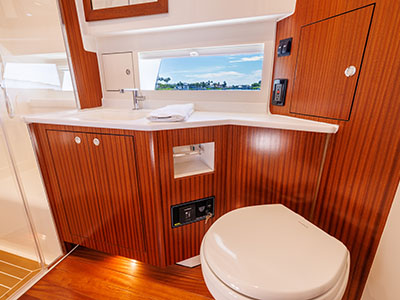

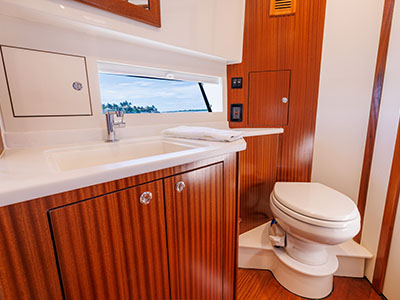

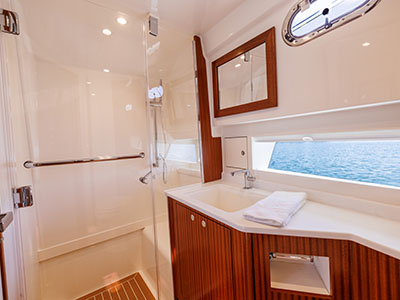

HEAD

• Fiberglass Private Head Compartment with Two Entry Doors (One Private Access from Primary Stateroom)

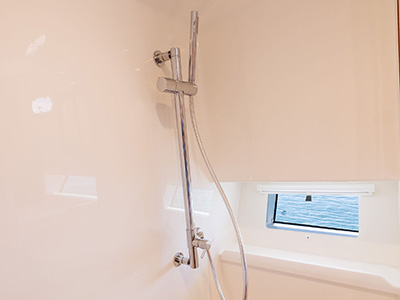

• Separate Shower Compartment with Acrylic Partition Wall & Door, and Shower Wand with Hot/Cold Mixing Valve
• Corian® Countertop with Sink, Hot/Cold Faucet and Storage Cabinet Below
• Upper Vanity Mirror
• Vacuum Flush Elongated Marine Head with 22 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
• Tempered Glass Hull Side Window w/Custom Window Trim with Marine Grade Pleated Blinds
• Portlight Window
• Toilet Tissue Holder
• Towel Rack
• 120V Outlet with GFCI Protection
• Two-Switch Panel with LED Overhead Lights and Floor Accent Lighting
• A/C Vent
• Shower Sump Box Drain with Automatic Discharge Pump

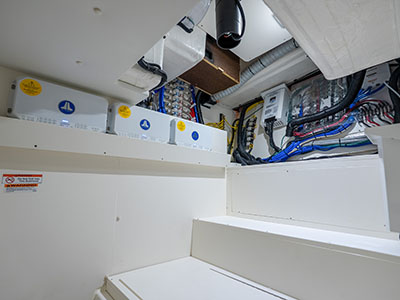

ELECTRICAL SYSTEM

• UL® Rated Fully Tinned, Color Coded Copper Wire
• Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
• Custom In-House Built, Electrical Harness with Waterproof Connectors and Chafe Protection
• Powder Coated, Aluminum, Screen Printed (Front and Back) Battery Switch and Breaker Panel
• Bonding System: Thru Hull Fittings Below Water Line, Zinc Anode and Garboard Drain
• Seven Battery System: Port Engine (1), Center Engine (1), Starboard Engine (1), Electronics (1) (AGM), House (2) (AGM) and Bow Thruster (1) (AGM)
• One (1) 40 Amp Battery Charger for House, Electronics and Bow Thruster Batteries
• One (1) 25 Amp Battery Charger for Engine Batteries
• 12V Outlets and USB Charging Ports
• Grounding Bus Bar
• Single 240V 50 Amp 60 Cycle Dockside Power Connection w/50' Cord and Electric Retractable Cord Reel
• 120V Outlets with GFCI Protection

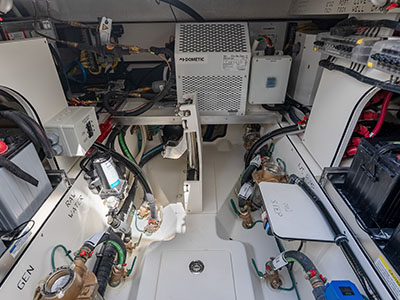

AFT MECHANICAL SPACE

• Molded Interior White Gel Coat Structural Foundation
• Molded Hatch with Gasket and Stainless Steel Gas Spring
• Molded Bilge Sump Area
• Mechanical Space Access Ladder (removable)
• One (1) 1500 GPH Bilge Pump with Electronic Switch and One (1) 1500 GPH Pump with High Water Electronic Switch and Alarm with Stainless Steel Clad Composite Thru Hull Fittings
• Raw Water Pump with Inline Filter, Seacock and Thru Hull Fitting
• Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
• Dedicated Fish Box Diaphragm Evacuation Pumps
• Dedicated Storage for Side Door/Platform Boarding Dive Style Telescoping Ladder
• Stern Anchor, 12 lb. Fluke Style with 30' of 1/2" 8-plait Line and Poly Storage Rack
• Battery Service Slide System, 316L SS (Port and Starboard)

FWD MECHANICAL SPACE

• Seakeeper 6 Gyro Stabilizer: Includes Comprehensive Structural Integration, Seakeeper Factory Certified Installation, Recreation Gold Warranty (4 Year or 3000 Hours, Direct Seakeeper Support)
• Water Heater, 6-Gallon
• Fresh Water Pressure Sensing Pump with Filter
• One Low Profile 1100 GPH Bilge Pump with Integrated Float Switch, with Stainless Steel Clad Composite Thru Hull Fitting

FUEL SYSTEM

• EPA Compliant 600 Gallon Aluminum Fuel Tank with Engine Pickups, Shutoff Valves, Digital Level Indicator, and Deck Fuel Fill Plate
• Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
• Three (3) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEM

• 50 Gallon Water Tanks (2) with Single Point Level Indicator and 316L Stainless Steel Deck Fill Plate
• Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
• Pressure Sensing/Variable Speed Pump with Filter
• Fresh Water Distribution Manifold with Dedicated Valves
• Dockside Fresh Water Inlet with Pressure Regulator
• 6 Gallon Stainless Steel Water Heater, 240V/60 Cycle

GENERATOR

• 120/240V, 60 Cycle 12 kW Fischer Panda Diesel Generator with Sound Enclosure and Service Slide
• EPA Compliant Lined 24 Gallon Rotomolded Fuel Tank with Engine Pickup, Shutoff Valve, Digital Level Indicator, Water Separating Fuel Filter and 316L Stainless Steel Deck Fill Plate
• Automatic Fire Suppression System

BOAT WITH ENGINES

COLOR SELECTIONS

COMFORT & CONVENIENCE

WEATHER GROUP

SPORT FISHING

ELECTRONICS

INTERIOR FABRIC
