S 328
ALL-NEW S 328



Pursuit S 328 Sport Center Console

The intentional focus paid to every meticulous detail on the revolutionized S 328 Sport is unmistakable. This ruggedly refined center console has a 34' 6" LOA powered by twin Yamaha® 300 or 350 engines. From the one-handed settee-to-berth conversion in the class-leading cabin to the improved helm ergonomics, each enhancement was crafted to feel like second-nature. We didn’t overlook a single square inch in this overhaul.

To start, on the top deck we have increased the storage to include an insulated transom cooler, in-floor gear storage and more drink and rod holders. Even the entertainment center has more storage with two new drawers. The improved wide-open layout and seating configuration make transitions from heart-pounding reeling to comfortable cruising incredibly easy. Upgrade options at the helm include additional teak accents, solid teak Edson steering wheel and leather dash pad, for the utmost luxury in captaining.

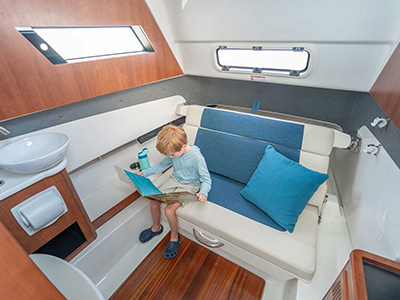

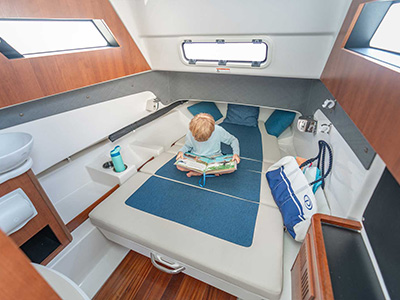

Below deck, you’ll find the revolutionized cabin. Unheard of in this size and class, Pursuit has led the way in bringing you exactly what you want at a level that is incomparable. Space has been optimized to include a hidden head and comfy settee that coverts to a roomy berth—and offers additional rod storage. It’s functional versatility at its finest!

Jump aboard the S 328 to cruise, dive, fish or overnight with the utmost ease and comfort. Once you’ve experienced Pursuit’s unrelenting performance paired with its timeless styling and fine lines, you’ll never look back.



Sample Advantage Club Membership card

JOIN THE CLUB!

Learn more here.





Built with Pursuit’s
PURETECH SUITE™
Learn more here.







L.O.A.
34' 6" (10.52 m)
Beam
10' 10" (3.30 m)
Hull Draft
(motors up)
(motors down)

2' 1" (0.64 m)
3' 0" (0.91 m)
*Clearance w/Hardtop
(from waterline)

9' 0" (2.77m)
Approx. Dry Weight
(twin F350 engines)

12,975 lbs. (5,885 kg)
**Fuel Capacity
300 U.S. gallons (1,136 L)
Diesel Generator Tank
16 U.S. gallons (61 L)
Fresh water Capacity
30 U.S. gallons (114 L)
Holding Tank Capacity
10 U.S. gallons (38 L)
Max. Horsepower
700 hp (522 kw)
Sleeping Capacity
2
Deadrise
20°





Plan View



*Hardtop Clearance shown does not include options which could increase this height dimension. **Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.







Effective date: Jan 23, 2025

HULL Features

  • Pursuit® Protection Plan:
    5 Year Hull and Deck Structural Warranty
    5 Year Blister Free Warranty
    2 Year Limited Warranty
  • Pursuit® Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 5/8" 316L Stainless Steel
  • Integrated Transom Platform Extensions Outboard of Engines
  • Boarding Ladder, 4-Step Telescopic, Mounted in Hull Platform
  • Anchor System, Integrally Molded Thru-Stem
  • Bow Thruster, 3.0 HP (2.2 kw) with Group 31 AGM Battery, Switch and Fuse
  • Dedicated Transducer Location
  • Forward Hull Compartmentation with One (1) 900 GPH Bilge Pump with Integrated Float Switch

DECK FEATURES

  • Hull and Deck Joint Mechanically Fastened
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area
  • Flush Mounted Integral Anchor Locker with Gas-Assisted Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker, 316L Stainless Steel Hinging Thru-Stem Anchor Roller with 8" Mooring Cleat and Chain Binder, 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle, 200' Rode (1/2" 8-Plait including 20' of ¼" G4 Chain), Fresh and Raw Water Connections, LED Courtesy Light, and Capstan Wrench Holder
  • Cleats, 316 Stainless Steel, 10" Pop Up (2) Stern, (2) Spring and (2) Bow
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Self-Draining Cockpit with Bronze Ball Valve at Hull Side
  • Bow Grab Rails, 316L Stainless Steel (Port and Starboard)
  • Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)
  • Single-Level Splashwell Deck with Nonskid for Athwartship Access
  • Backlit Pursuit Logos (Port & Stbd Console)

COCKPIT FEATURES

  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Custom Molded Side Boarding Door (Port) with Heavy Duty 316L Stainless Steel Hardware and Deck Mounted 316L Stainless Steel Keyway Plate for Dive Style 4-Step Telescoping Ladder (with dedicated storage on underside of mechanical space hatch)
  • Folding Transom Seat with Full Height Rotating Backrest and Integrated Grab Rails
  • Folding Aft-Facing Seat with Full Height Rotating Backrest and Integrated Grab Rails
  • Built-In Transom Cooler with Molded Foam and Fiberglass Lid
  • Molded Entertainment Center with Sink (w/prep area divider), Fresh Water Faucet, Tub Storage with Divider and Cutting Board with Dedicated Storage, 120V GFCI Protected Outlet, Hinged Fiberglass Lids and Storage Drawers Below
  • Molded Leaning Post with Starboard Side Tackle Center (Includes Knife & Plier Storage, Four Tackle Boxes, and Drawer Storage) and Forward Side Storage for Trash Receptacle & Add’l Tackle Boxes
  • 12V Main Distribution Panel with Lockable Door
  • Audio Entertainment System: JL Audio Stereo System with Bluetooth® Compatible Media Master MM105-HR Hidden Source Unit, Helm-Mounted Volume Control Knob, Premium M6 Coaxial Speakers with Classic Grilles – (4 Hardtop, 2 Bow), 10" Subwoofer (1), Amplifier, Wireless Remote Control, and FM Antenna with Ratchet-Mount Base
  • Custom Fiberglass Cockpit Tables (2) with Dedicated Storage (in enclosed coaming storage) – Usable in Aft Cockpit & Bow
  • Machinery Access Hatches (2) – Aft Cockpit and Helm
  • Fresh Water Wash with Chrome over Brass Pull out Sprayer
  • Fresh & Raw Water Outlets in Cockpit with Quick Connect Fittings and 25' Hoses
  • LED Cockpit Courtesy Lights and Blue Mid-Level Accent Lights
  • Forward Facing Seat on Front of Console with Armrests & Drink Holders
  • Molded Forward Bow Seating with Insulated Storage Below, Electrically Actuated Forward Facing-Backrests for Port and Starboard Seats, Removable Forward Jumpseat, Six Drink Holders, and 12V / USB Outlets
  • Port and Starboard Forward Coaming Storage Bins with Dedicated Table & Dock Line Storage, and Lockable Lids
  • In-Floor Gear Storage Locker (Stbd Side)
  • Drink Holders Located in Gunwale, Two (4)
  • Fire Extinguishers (2-Port & Starboard Under Gunwales)
  • Bow Tonneau Cover, Sunbrella®
  • Helm and Companion Seat Cover, Sunbrella®

FISHING FEATURES

  • Rod Holders (9), Stainless Steel, (4 Gunwale, 5 Transom)
  • Lighted Oceana Blue 24 Gallon Recirculating Livewell with Fiberglass Lid and Acrylic Window
  • Rod Storage: Under Gunwale w/Reel Protector Pad (3-Starboard), Under Hardtop (4), Cabin (6)
  • Fish Boxes with Molded Insulation and Diaphragm Pumps with Overboard Discharge (Port and Starboard)
  • Bait Prep Areas Under Entertainment Center Lids
  • Tackle Storage in Leaning Post
  • Pre-Rigged for Downriggers (aluminum reinforcement plates installed port & starboard)
  • Pre-Rigged for Electric Reel Outlets (wiring installed port & starboard)

HARDTOP & WINDSHIELD FEATURES

  • Molded Fiberglass Full Beam Hardtop with Large Sliding Access/Ventilation Hatch, Integral Grab Rails (Topside and Windshield B-Pillars), Overhead Electronics Mounting Surface and Dedicated Locations for Outriggers and Electronics
  • Powder Coated Hardtop Structural System with Heavy Duty Aft Supports and Integrated Handrails
  • Custom Windshield System with Tempered Glass and Electrically Actuated Center Vent
  • Pantographic Windshield Wiper with Fresh Water Washer
  • Navigation Lights, 2-Mile LED (integrated into hardtop corners)
  • Custom Stainless Steel Ratcheting Anchor/Stern Light with Burgee Rings and Embroidered USA Flag
  • Four (4) Tri Color LED Lights
  • Spreader Lights, LED (2 forward-facing, 2 aft-facing)
  • Integrated Stereo Speakers (4)
  • Horn, Trumpet

HELM

  • Molded Fiberglass Aft Tilting Helm with Molded-In Instrumentation Visor, Wood Accent Trim, Electronics Mounting Surface (Accommodates Dual 16” Displays), Molded-In Storage Cubbies and Fold Out Fiberglass Footrest/Platform
  • Custom 60/40 Helm Seating Configuration with Independent Foldable Armrests (4), Two (2) Articulating Flip-Up Bolsters and Lumbar Support, Fore & Aft Adjustment on Captain’s Chair and Fold Out Footrest for Companion Seat
  • Yamaha Electric Steering with Programmable Steering Friction, Tilt Helm, Edson 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip
  • 12V Switch Panel with Illuminated Rocker Switches and Backlit Function Text
  • JL Audio MM105-HR Hidden Source Unit (Full-function Control on Garmin® MFDs), Helm-Mounted Volume Control Knob, and USB Input
  • Wireless Inductance Phone Charger (located on face of dash for easy viewing)
  • Compass
  • Trim Tab Control Panel with Position Indicators
  • 12V Outlet and Dual USB Charger
  • 316L Stainless Steel Helm Drink Holders (3)
  • Bow Thruster Joystick Control
  • Dash/Instrument Cover (Stamoid Light)
  • Helm/Companion Seat Cover (Stamoid Light)

ELECTRONICS

  • Garmin® Electronics Package: Dual GPSMAP 8616 [1-XSV] with Pursuit Custom Dash Panel, Airmar B175M 1kW CHIRP Transducer, NMEA 2000 Starter kit, Yamaha MFDI Interface, and VHF Radio with Antenna and Ratchet-Mount Base
  • SirenMarine® Connected Boat® Smart Boat Monitoring & Theft Deterrent System: Siren 3 Pro Main Device with Mobile App Interface, GPS Vessel Tracking and Sensors for Battery, Shore Power, Bilge and Security Monitoring (Includes 3 Month Subscription)

CONSOLE CABIN & HEAD

  • Molded Acrylic Access Door with Gasket and 316L Stainless Steel Locking Latch
  • Cabin Entry Steps with Handrail and Wood Treads
  • Molded Cabin Deck Liner
  • Custom Tempered Glass Side Windows with Interior Valances and Built-In Sliding Privacy Shades
  • Opening Portlight (forward) with Screen
  • Vacu-Flush Porcelain Marine Head with 10 Gallon Holding Tank, Macerator Discharge Pump, 316L Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
  • Head Disguised as Seating via Fiberglass Toilet Seat Cover with Cushion and Removable Cover Panel
  • Vanity with Corian® Countertop, Designer Sink, Faucet, Vanity Mirror, Toilet Tissue Holder, and Storage Below
  • Dedicated Storage for Six (6) Rods (4 Under Bunk, 2 Starboard Wall)
  • Switch Panel at Companionway for Cabin Lighting
  • Convertible Seating/Berth Accommodations: Full-Width Settee with Two (2) 316L Stainless Steel Drink Holders, One-Handed Conversion to Sleeping Berth, Hinging Backrest and Gas-Assisted Forward Cushion for Access to Large Storage Trunk/Rod Storage
  • Custom Solid Wood Tongue and Groove Floor Accents
  • 120V Main Distribution Panel Cabinet with Cubby Storage
  • 12V Outlet and Dual USB Charger
  • 120V Outlet with GFCI Protection
  • Fire Extinguisher
  • CO Monitor

ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color-Coded Battery Cables
  • Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection
  • DC Main Distribution Panel, Powder Coated Aluminum & Screen Printed (Front and Back)
  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
  • Four Battery System: Port Engine (1), Starboard Engine (1), House (1) (AGM), and Bow Thruster (1) (AGM)
  • 40 Amp Battery Charger
  • Dockside Power Connection with 50' Power Cord (with Adapter), Single 120V 30 Amp 60 Cycle
  • 12V Outlets and Dual USB Chargers
  • 120V Outlets with GFCI Protection
  • Electronics Fuse Block
  • Grounding Bus Bar

MECHANICAL SPACES (AFT & HELM)

  • Molded Interior White Gel Coated Structural Foundation
  • Molded Hatches with Gaskets, Stainless Steel Gas Spring (aft), and Securing Strap (helm)
  • Molded Bilge Sump Area
  • Dedicated Storage for Hull Side Boarding Door Ladder Under Aft Cockpit Hatch
  • Stern Anchor, 4 lb. Aluminum Adjustable Fluke-Style with 50' of 1/2" Anchor Rode, 5' of 1/4" G4 Chain, and Custom Pursuit Storage Bag
  • Bilge Pumps with Stainless Steel Clad Composite Thru Hull Fittings: Two (2) 1500 GPH with Electronic Switches (one high-water with alarm), One (1) 900 GPH with Integrated Float Switch
  • Fresh Water Pump with Filter
  • Raw Water Pump with Sea Strainer, Seacock and Thru Hull Fitting
  • Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • Dedicated Fish Box Diaphragm Evacuation Pumps

FUEL SYSTEM

  • EPA Compliant Lined 150 Gallon (Port and Stbd) Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEM

  • 30 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Pressure Sensing/Variable Speed Pump
  • Fresh Water Distribution Manifold with Dedicated Valves
  • Cockpit Shower



Pursuit reserves the right to change boat specifications, equipment, color schemes, and pricing, and/or discontinue models at any time without notice or obligation. Some of the boats shown include optional or dealer-installed equipment.




Hull Color - Carbon

Bootstripe Color - Red/Red

Helm Color - Carbon



BOAT WITH ENGINE(S)

Twin Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES), Helm Master® EX Digital Electronic Controls (DEC) (Does Not Include Joystick Control), Multifunction Display Interface, and Cockpit-Mounted Manual Engine Flushing Ports Twin Yamaha® Digital F350 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES), Helm Master® EX Digital Electronic Controls (DEC) (Does Not Include Joystick Control), Multifunction Display Interface, and Cockpit-Mounted Manual Engine Flushing Ports Yamaha® Joystick Control with Full Maneuverability (Set PointTM and Autopilot)

COLOR SELECTIONS

Hull Color
Carbon, Neptune Gray, Sea Mist, Flag Blue, Arctic Blue, Fresh White Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue) Underside Hardtop Color
Fresh White (Standard), Carbon, Neptune Gray, Sea Mist, Flag Blue, Arctic Blue Helm Color
Carbon (Standard), Neptune Gray, Sea Mist, Flag Blue, Arctic Blue, Fresh White Boot Stripe Color
Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray Upholstery Color
Sea Salt (Standard), White/Gray

MECHANICAL SYSTEMS

Generator 120V/60Hz (5.0kw Fischer Panda Genset with 16-GAL Diesel Tank 120V/60Hz Cabin Air Conditioning with Reverse Cycle Heat, 6,000 BTU 120V/60Hz Cockpit Grill (replaces stbd storage tub in entertainment center) Bow Tow Eye

COMFORT & CONVENIENCE

Premium Helm Upgrade: Edson Solid Teak Steering Wheel with Power Knob, Leather-Wrapped Dash Pad (Black), Synthetic Teak Flooring on Helm Footrest Treads, and Teak Accents on Dash Storage Pockets and Entertainment Center 12V Cockpit Refrigerator/Freezer, Stainless Steel (Replaces Starboard Leaning Post Tackle Center) Bow Sun Pad with Filler Cushions Ski Tow, Transom Mount, Removable Premium Stereo Upgrade: All Speakers Upgraded to Sport Grilles with Full Spectrum Backlighting (controlled through MFDs), Two (2) Additional 7.7" Coaxial Speakers, One (1) additional 10" Subwoofer, One (1) Additional Custom-Tuned DSP Amplifier and SiriusXM® Receiver with Antenna (Incudes 3 Month Subscription)
Note: for visibility purposes, the two forward hardtop overhead 7.7" speakers are not backlit

SPORT FISHING

Hardtop Corner-Mounted Rod Holders (6 + 2 Kingfish Rod Holders) Outriggers – Gemlux Deluxe Stainless Steel Bases with 18' Collapsible Carbon Fiber Poles, Gemlux Premium Double Rigging Kits with Gemlox Halyard Locks and Line Caddys (also included are two Taco deck-mounted line tensioner/cam locks) Bow Rod Holders (4)

ELECTRONICS

Garmin® Radar Open Array GMR Fantom 54 FLIR M332 Night Vision with Image Stabilization (Cannot be Ordered with Spotlight Option, May Not be Available for Purchase Outside of the U.S.) Garmin GC-14 Rear Facing Camera SiriusXM® Weather Receiver (Subscription Required) Spotlight (ACR RCL-100 LED) with Remote Control at Helm (Cannot be Ordered with FLIR Package) Underwater Lights (3) All Color SeaBlaze Quattro Spectrum

WEATHER GROUP

Custom Hardtop Integrated Electric Retractable Sunshade with One Touch Operation Bow Mediterranean Sunshade, Removable with Carbon Fiber Poles, Storage Bag and Dedicated Storage Sunbrella® Canvas Color: Black, Tweed, Cadet Gray or Navy Side Curtains (6 Piece) with 60 mil Strataglass (Attaches to Gunwale) Side Curtains Upgrade (White) (Attaches to Gunwale) Aft Curtain, Sunbrella® Aft Curtain, Stamoid® - White Bow Tonneau Cover, Stamoid® - White Engine Covers (2), Sunbrella®

INTERIOR FABRIC

Tranquil Seas (Standard)
Coastal Sunrise
