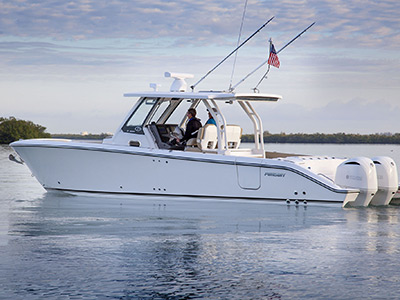

S 328 Sport

Specifications - Preliminary

  • L.O.A. 34’ 6” (10.52 m)
  • Beam 10' 10" (3.30 m)
  • Hull Draft  (motors up)1’ 10” (0.56 m) (motors down)2’ 8” (0.81 m)
  • *Clearance w/Hardtop  (from waterline)8’ 2” (2.49m)
  • Approx. Dry Weight  (twin F300 engines)11,775 lbs. (5,341 kg)
  • **Fuel Capacity 300 U.S. gallons (1,136 L)
  • Fresh water Capacity 30 U.S. gallons (114 L)
  • Holding Tank Capacity 10 U.S. gallons (38 L)
  • Max. Horsepower 700 hp (522 kw))
  • Deadrise 20°


*Hardtop Clearance shown does not include options which could increase this height dimension.
**Net tank capacity. The usable fuel capacity will be affected by several factors, including EPA-required fuel system components, temperature and loading of the boat. These factors will reduce the usable fuel capacity by approximately 10%.

Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your Pursuit dealer.


S 328 Product Brochure - View Online
Full Line Product Catalog - View Online









Arriving in early winter 2017, the new S 328 is a boat you’ll want to wait for.

The pursuit sport series of Center Consoles reached new heights with the introduction of the flagship pursuit S 408 during the 2016 Miami International Boat Show. The all new pursuit S 328 will broaden the range of this new line of pursuit models.

The Sport series styling will translate to the new 32 including the oversized fiberglass integrated hardtop and windshield system, updated classic sheerline, throughstem anchor system and integrated transom extensions.

The exterior styling will be complimented inside by a forward wrap-around lounge at the bow just opposite of the forward facing seating in the console. A large helm seat faces the generous console with access to the console getaway below. A two-person berth converts to an aft facing seat with large open storage areas port and starboard. A head and sink with vanity could let you overnight and at least freshen up for a dinner shore side.

The aft cockpit accommodates serious fishing and with the fold away fore and aft seats quickly converts to a social area at the dock. All your fishing necessities are built in and the new Pursuit optional side dive door adds to the overall use.


Standard Equipment - Preliminary

Preliminary - January 9, 2017

HULL, DECK & COCKPIT

  • Pursuit® Protection Plan:
    5-year hull/deck structural warranty
    5-year blister-free warranty
    2-year limited warranty
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
  • Integrally Molded Thru-Stem Anchor System with Fresh and Raw Water Washdown
  • Horizontal Anchor Windlass with Switch at Helm and Remote
  • 316L Stainless Steel Delta Plow Style Anchor, Twist Shackle, Chain and 200’ of 1/2” Rode
  • 316L Stainless Steel Through Stem Anchor Roller with 8” Mooring Cleat, Chain Binder and Aluminum Backing Plates
  • 3.0 HP Bow Thruster with Group 31 AGM Battery
  • Trim Tabs with Indicator Lights and Auto-Retract
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Integrated Transom Platforms Extensions Outboard of Engines
  • 4 Step Telescopic Boarding Ladder Mounted in Hull Platform
  • Forward Hull Compartmentation with One (1) 900 GPH Bilge Pump with Intergrated Float Switch
  • Dedicated Transducer Location
  • High Density PVC Rubrail with Solid 316L Stainless Steel Insert
  • ½“ 316L Stainless Steel Bow Eye

HARDTOP

  • Molded Fiberglass Full Beam Hardtop
  • Aft Structural Hardtop Supports
  • Custom Windshield System with Tempered Glass and Electrically Actuated Center Vent
  • Combination Anchor/Stern LED All-around Navigation light.
  • Four (4) Tri Color LED Lights
  • Fore and Aft Facing Spreader Lights
  • 316L Stainless Steel Underside Grab Rails
  • 60 mil Strataglass™ Side Dodgers Weather Curtains
  • Integrated Stereo Speakers (4)
  • Intergrated Life Jack Storage in Leiu of Optional Electric Sunshade
  • Hardtop Acrylic Access/Ventilation Hatch
  • Molded Overhead Electronic Mounting Surface

DECK AND COCKPIT FEATURES

  • Molded FRP Hull Side Dive Door with boarding ladder and hideaway handrail
  • Molded One Piece, Single Level Deck with Non-Skid Pattern Area and Overboard Drains
  • Hull and Deck Joint Mechanically Fastened
  • 10” Pop Up Cleats (2) on Stern and 10” Pop Up Cleats Spring (2) and Bow (2)
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Flush Mounted Integral Anchor Locker with Fiberglass Lid
  • Two Piece Port and Starboard 1” Welded 316L Stainless Steel Recessed Bow Grab Rail
  • Port and Starboard Forward End Tables with Two (2) Drink Holders, 12V and USB Outlet, Forward Stereo Remote and Storage Below
  • 316L Stainless Steel Deck Plates for Water and Waste
  • Four (4) 316L Stainless Steel Rod Holders in Gunwale with Two (2) Drink Holders
  • Under Gunwale Rod Storage, Starboard
  • Molded Transom Walkthrough and Hinged HDPE Transom Door with 316L Stainless Steel Latch and Magnetic Catch
  • Port and Starboard 316L Stainless Steel Transom Grab Rails
  • Molded Non-Skid Steps in Splashwell for Athwartship Access
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • 60/40 Helm Seating Configuration with Foldable Armrests, Fore, Aft and Vertical Adjustment on Captain’s Chair and fold out footrests.
  • Molded Entertainment Center with Sink, Fresh Water Faucet, Insulated FRP Cooler with Corian Lid, Drink Holders(2), Cutting Board, 110V GFI Protected Outlet, Hinged Fiberglass Lids and Dedicated Storage Below
  • 12V, 2.3ft3 Stainless Steel Drawer Refrigerator with 3M Protective Film
  • 12V MDP
  • Pursuit Cockpit Entertainment System: 12V Bluetooth® Compatible Stereo System, Premium Speakers (7 Total, 4 in Hardtop, 2 in Bow, and Subwoofer), Amplifier and Zonal Remotes (2)
  • Lighted Oceana Blue 24 Gallon Recirculating Livewell with Fiberglass Lid and Acrylic Window
  • Folding Aft Facing Seat with Adjusting Backrest
  • Folding Transom Seat with Adjusting Backrest
  • Custom Fiberglass Cockpit Tables (2) with Dedicated Storage
  • Port and Starboard Insulated Fishboxes
  • Cockpit Machinery Access Hatch
  • Bridge Machinery Access Hatch
  • Four (4) 316L Stainless Steel Intergrated Transom Rod Holders
  • Fresh Water Wash with Chrome over Brass Pull out Sprayer and Quick Fittings
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25’ Hose
  • LED Cockpit Accent Lights (7) with Water Proof Switch in Cockpit
  • Port and Starboard 2 mile LED Navigation Lights
  • Mid Level LED Accent Lights
  • Forward Facing Seat on Front of Console with Armrests
  • Molded Forward Bow Seating with Insulated Storage Below, Electric Hinged Forward Facing Backrests for Port and Starboard Seats

HELM

  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor Electronics Mounting Surface, Fold Out Fiberglass Foot Rest/Platform, and Safety Lanyard
  • Teleflex Tilt Sport Helm
  • 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip
  • 12V Switch Panel
  • Single Windshield Wiper with Washer Control
  • Compass
  • Trim Tab Control Panel and Indicator
  • Waterproof Stereo Remote with Full Function Display
  • Two 12V Outlet (2) and Dual USB Charger
  • Helm Fire Extinguisher

CONSOLE INTERIOR

  • Molded Acrylic Access Door with Gasket, 316L Stainless Steel Locking Latch
  • Cabin Entry Steps with Handrail and Wood Treads
  • Molded Cabin Deck Liner
  • Vacuum Flush Marine Head with 10 Gallon Holding Tank, Macerator Discharge Pump, Deck Pump-out Fitting and Bronze Through Hull Fitting with Privacy Curtain
  • Fiberglass Toilet Seat Cover
  • Head Privacy Bulkhead
  • Designer Sink with Corian® Countertop, Fresh Water Faucet and Vanity Mirror
  • Dedicated Storage for Four (4) Rods, 4 SCUBA Tanks, and Safety Gear
  • Two Switch Panel with Overhead LED Lights (2) LED Floor Accent Light (1)
  • Convertible Berthing Accommodations/Seating with Cushions
  • Custom Solid Wood Tongue and Groove Floor Accents
  • 120V Main Distribution Panel Cabinet
  • One 12V Outlet (1) and Dual USB Charger
  • One 120V Outlet (1) with GFI Protection
  • Fire Extinguisher
  • CO Monitor

ELECTRICAL SYSTEMS

  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom Built, One Piece Electrical Harness with Water Proof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) Main Breaker Panels
  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
  • Single 120V 30 Amp 60 Cycle Dockside Power
  • One 120V 30 Amp 50’ Dockside Power Cord
  • Two 120V GFI Outlets (2)
  • Four 12V Outlets (4) and Three USB Outlets (3)
  • One 40 AMP Battery Charger
  • Four Battery System: Port Engine (1) Starboard Engine (1), House (1) , Bow Thruster (1)
  • One Grounding Bus Bar
  • Electronics Fuse Block
  • Isolation Transformer

MECHANICAL SPACE

  • Molded Interior White Gel Coat
  • Molded Hatch with Gasket and Stainless Steel Gas Spring
  • Molded Bilge Sump Area
  • One 900 GPH and One 1500 GPH Bilge Pumps with Float Switches and One 1500 GPH Bilge Pump; all with Stainless Steel Clad Composite Thru Hull Fittings and High Water Alarms
  • Fittings and High Water Alarm
  • Fresh Water Pump with Filter
  • Raw Water Pump with Sea Strainer, Sea Cock and Thru Hull Fitting
  • Dedicated Fishbox Diaphragm Evacuation Pumps

FUEL SYSTEM

  • EPA Compliant Lined 300 Gallon Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves and Digital Level Indicator.
  • Custom Built Fuel Lines with Mechanically Crimped Fittings
  • Two Yamaha® Water Separating Fuel Filters with Primer Bulbs

WATER SYSTEM

  • 30 Gallon Fresh Water Tank Capacity
  • Custom Built Reinforced Color Coded Water Hose
  • Pressure Sensing Pump
  • Cockpit Shower

Optional Equipment - Preliminary

BOAT w/ENGINES:

  • Twin Yamaha® F300 Engines

COLOR SELECTIONS:

  • Pursuit Titanium Hull
  • Pursuit Cashmere Hull
  • Pursuit Navy Blue Hull
  • Pursuit Stars and Stripes Hull
  • Boot Stripe - Black/Black, Red/Red, Navy Blue/Navy Blue, Platinum/Platinum, Scarlet/Scarlet
  • Boot Stripe - Artic White/Quartz Gray
    (Used with Titanium, Navy Blue)
  • Boot Stripe - Artic White/Sandcastle
    (Used with Cashmere Only)
  • Helm color - Titanium, Cashmere, Navy Blue, Stars and Stripes
  • Sunbrella® canvas color - Navy, Black, Tweed, Cadet Grey
  • Painted Engines - Fresh White with Platinum Graphics

INDIVIDUAL OPTIONS:

  • Hardtop Mounted Outriggers with 18’ Telescoping Poles
  • Underwater Lights (Blue/White Combination)
  • Custom Hardtop Integrated Stainless Steel Retractable Electric Sunshade with One Touch Operation, Full Cockpit Coverage, and White Sunsilk Fabric
  • Aft Med. Stowable Sunshade
  • Forward Med. Stowable Sunshade
  • Spotlight with Remote Control at Helm
  • Hardtop Mounted Rod Rack (5)
  • Bow Tow Eye
  • Forward Sunpad
  • 120V/60 Cycle 4.2 kW Fischer Panda® Diesel Generator with Sound Shield with EPA Compliant Lined 16 Gallon Fuel Tank with Engine Pickup, Shutoff Valves and Digital Level Indicator
  • 120V/60 Cycle Interior Air Conditioning with Reverse Cycle Heat. 6,000 BTU Self Contained Unit for Cabin Interior with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • 120V/60 Cycle Cockpit Grill

MECHANICAL SYSTEMS:

  • Yamaha Helm Master™ Steering System Control with Single Joystick Operation
  • Garmin® 7612 Electronics Package
    • Garmin® GPSMAP 7612xsv 12-inch Multi-touch Widescreen Display
    • Garmin® GPSMAP 7612 12-inch Multi-touch Widescreen Display
    • Airmar® B164 1 kW Thru-Hull Transducer
    • VHF 300 Marine Radio
    • Galaxy® XP 8’ Extended Performance VHF Antenna
    • NMEA 2000 Starter Kit
  • Garmin® GMR™ 424 xHD2 72 Mile Open Array Radar
  • Garmin® Reactor Corepack w/Smartpump Auto Pilot
  • Garmin® GHP Reactor Auto Pilot
    (with Helm Master)

WEATHER GROUP:

  • Hard Top Aft Curtain, Sunbrella®
  • 3 Piece Drop Curtain, Sunbrella®
  • Instrumentation Cover, Sunbrella®
  • Engine Covers, Sunbrella®
  • Helm Seat Cover, Sunbrella®
  • Upgrade Canvas, Stamoid® - White
  • Hard Top Aft Curtain, Stamoid® - White
  • 3 Piece Drop Enclosure, Stamoid® - White
